Regular Injection Mold

Besides prototype injection molds, we also make regular injection molds for our clients.



When our customers received a good reputation from the marketing on their new items which be produced by prototype injection molding, Order forecast quantity will be increased, or Our customers are planning to launch mass production when the new project has passed all the testing and verification. Some of our customers will ask us to upgrade the prototype molds to mass-production molds.



Mold Design

1, Good mold design can prevent those problems that may happen during production, We have been in the manufacturing industry for more than 20 years, and We know what kind of quality problems often occur in production, We will try to avoid them in mold design. We have the know-how to offer our clients the most cost-effective and safe mold design.

2, Available file formats for your 3D data.

We support multiple files-formats including major software such as Solidworks, UG, ProE, Catia, STEP, SAT, and IGES.

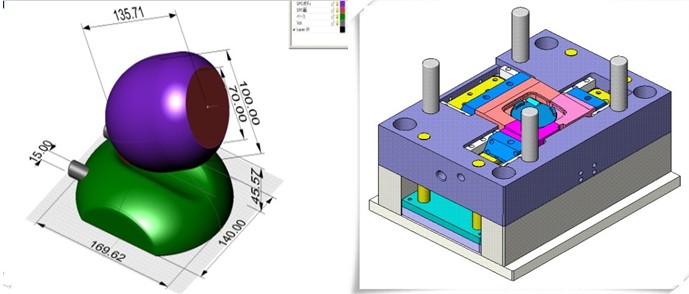

mold  design



Mold Fabrication

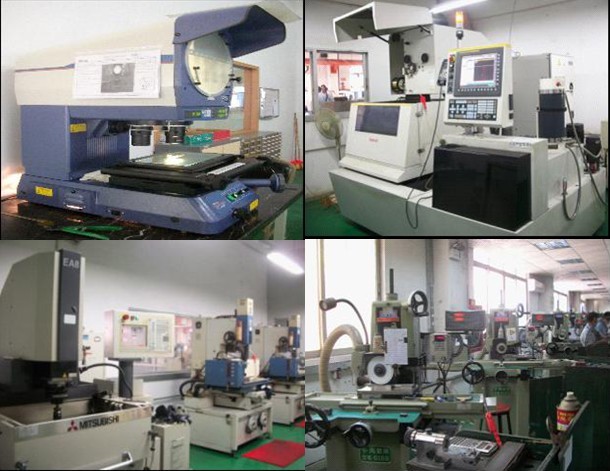

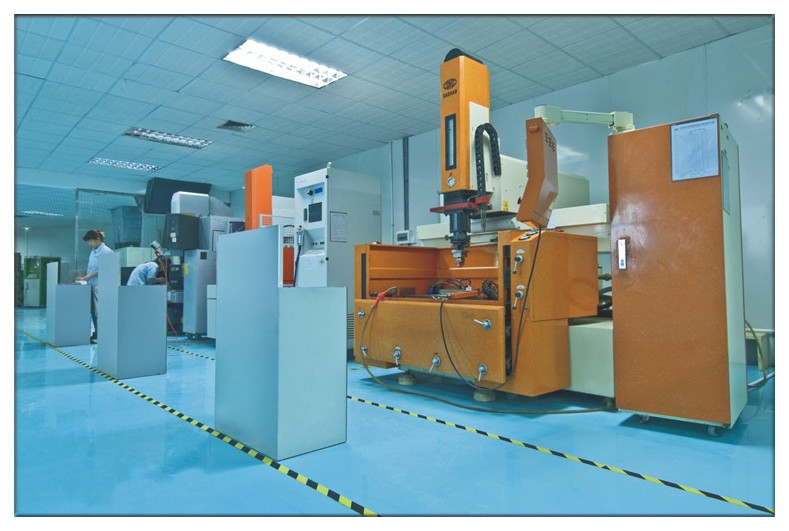

We have high-precision processing machines, such as MIKRON CNC, Milling Machine Center, Mirror EDM, Wire Cut Machine, etc.
Skillful staff have been highly trained, most of them with over 7 years of experience in mold manufacturing
mold capabilities
1)Max size:
Length 1.5m * Width 1.5m
Mold life.:MAX5000,000 Shot
2)Mold type
1, 3 plate mold
2, Overmolding
3, double-shot injection mold
4, insert mold
5, Runner type; Hot/Cold
3)Mold type(by application)
Automotive Mould
Industrial Parts mould
Electronic Product Mould
Household Mould
Toy Mould
4) Most often used mold materials
#718,NAK80, S136
5)Materials for plastic injection molding
PA/PC/PP/PE/ABS/Nylon/POM/PC/PP/PE/ABS/PVC/
TPE、PCABS、TPV、PS/PMMA、ABS+PC, TPE, TPR, ASA, PA+GF etc.



Case Study

Plastic Injection Mold
we provide customers with the following molds

-Temporary mold to prove the design
-Accurate mold for precision parts
-Low-budget mold for small-volume production
-Mold for big-volume production

Name: High precision plastic injection mold
Mould material: 45#, 50#, P20, H13, 718, 2738, NAK80, S136, SKD61 S316 etc.
Mould base: LKM, HASCO, etc
Cavity Single/multi
Runner: Hot/cold
Design software: UG, PROE, CAD, CAXA ect.
Plastic material: PP, PC, PS, PE, PU, PVC, ABS, PMMA etc.
Mould life: 300, 000-3, 000, 000 shots
Delivery time: 15-60days
Specification: Depends on the customer's requirements.

Step
1. R&D: We support customers' R& D. Make the files or improve the design if needed.
2. Negotiation the quality, price, material, delivery time, payment item, etc.
3. Place an order according to your design or choose our design.
4. Mould: Building the mold according to the customer's required specifications. Before mold-making, we send mould design to the customer for approval first, and before moving forward to production; we send samples to the customer to confirm first.
5. Sample shoot: If the first shoot sample is not satisfactory, we will keep modifying the mould until meeting the customer's satisfaction.
6. Delivery time: Delivery by sea or by air, According to the customer's requirement.
